PoE Injector

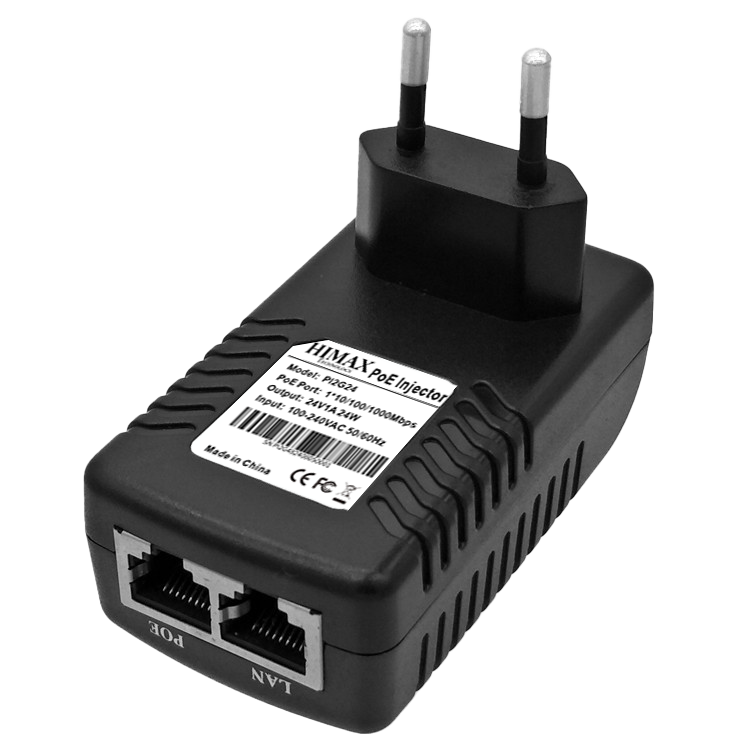

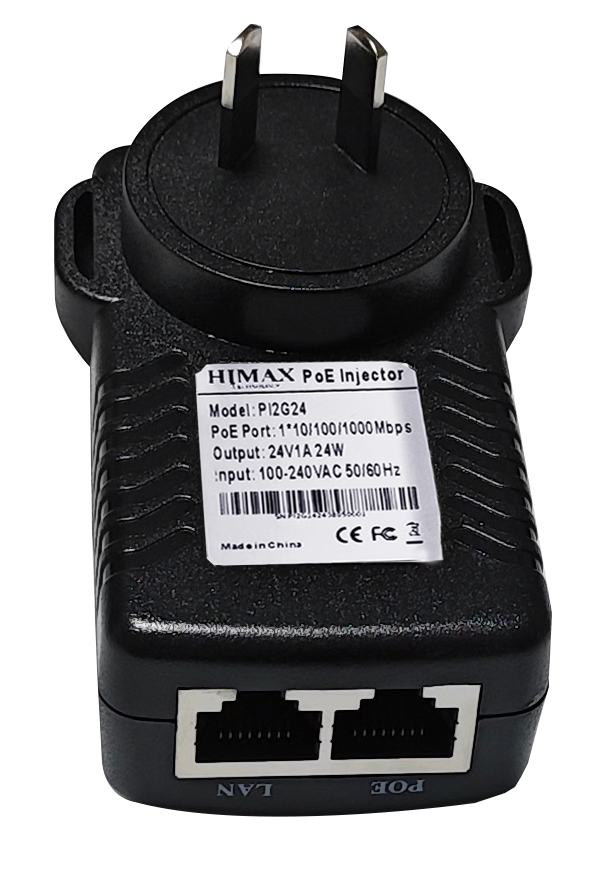

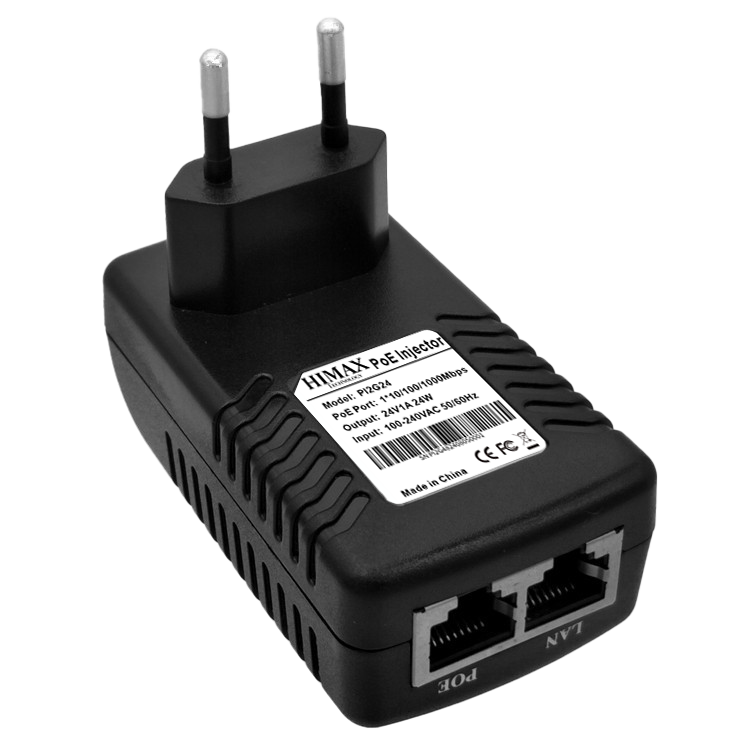

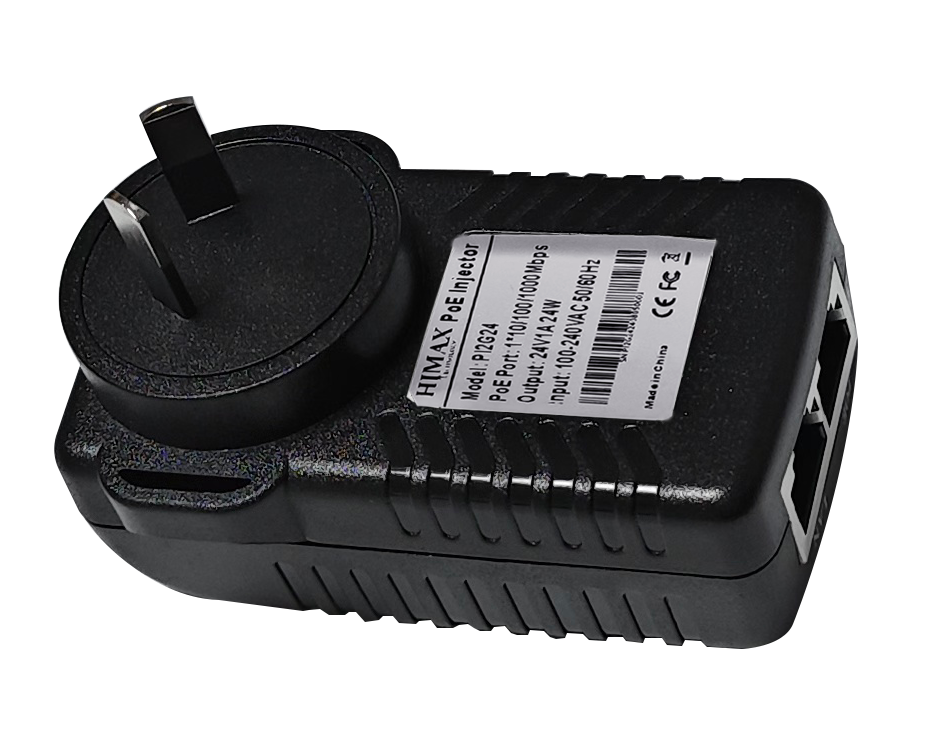

PI2G24

◎ 24W series desktop POE power adapter ◎ Input: 100-240V AC ◎ DC Output: 24V 1A ◎ DC PORT: 2*RJ45 : Port 1: LAN, Port 2: POE ◎ POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 1,2,4,5(+) 3,6,7,8(-) both ◎ Data Speed: 10/100/1000Mbps ◎ Size: 84*46.9*31.7mm(exclude plug) ◎ Application: IP Camera, VoIP Phone, Network AP device etc.

PI2G24 Datasheet_.pdf


Characteristic

    ◎ 24W series desktop POE power adapter

    ◎ Input: 100-240V AC

    ◎ DC Output: 24V 1A

    ◎ DC PORT: 2*RJ45 : Port 1: LAN, Port 2: POE

    ◎ POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 1,2,4,5(+) 3,6,7,8(-) both

    ◎ Data Speed: 10/100/1000Mbps

    ◎ Size: 84*46.9*31.7mm(exclude plug)

    ◎ Application: IP Camera, VoIP Phone, Network AP device etc.
